Product Overview
Green Energy Pledge Friendly Energy Star Certified Eligible for Tax Credit ✓

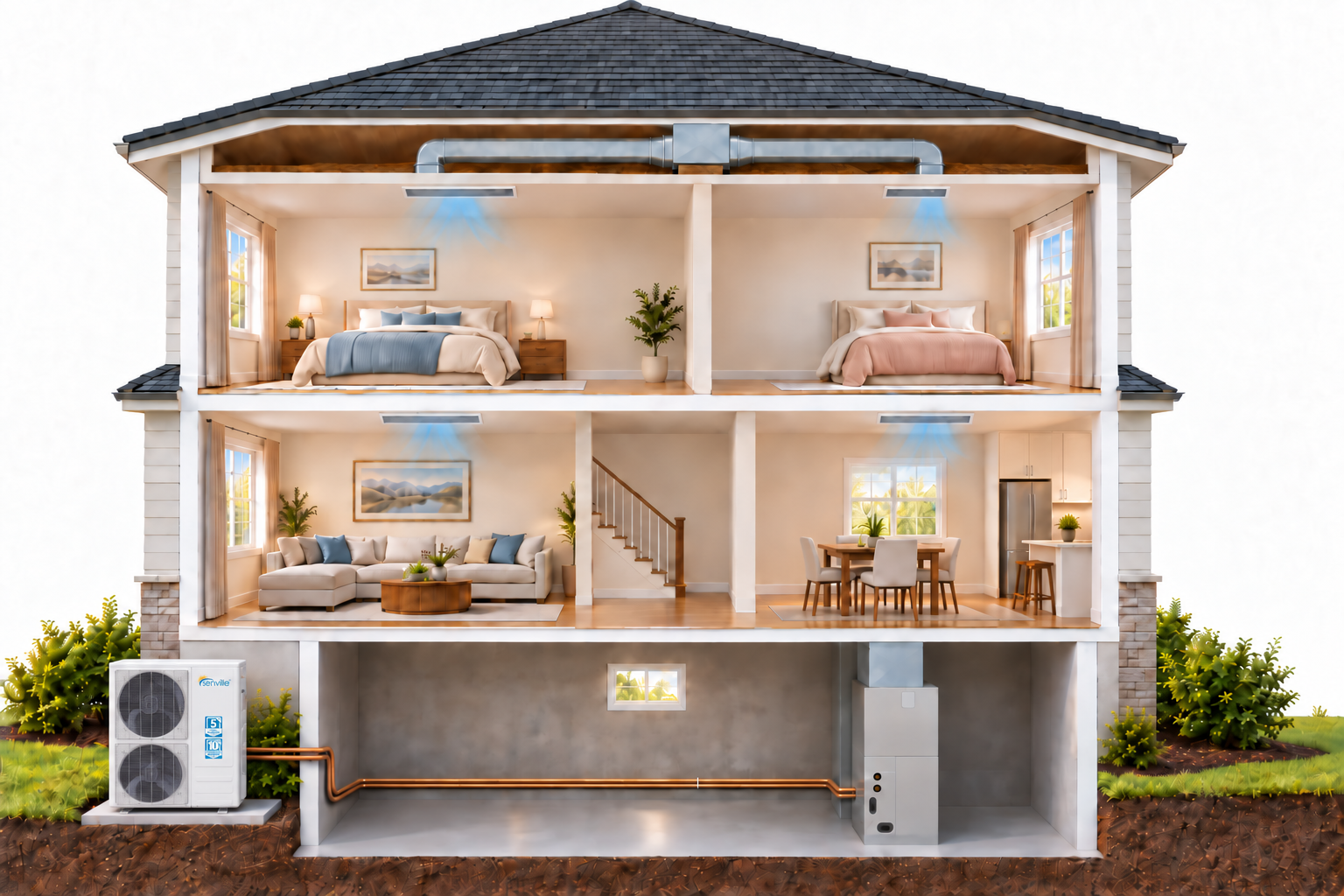

The Senville Central Mini Split System allows you to upgrade your existing central system to the latest in DC Inverter Technology. With the same energy efficiency as a standard mini split, you can enjoy up to 30% in energy savings compared to a traditional central system.
**Does NOT include line set**
Technical Specifications
| Model Number | SENDC-60HF |
| Style | Central Air Conditioner with Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 15.3 |
| EER2 | 8.8 |
| Cooling (Range) | 14000~56000 |
| Input (W) | 6280 (500-6450) |
| Rated current A | 27.4 |
| Heating (Range) | 13400~69000 |
| Input (W) | 5060 (750-5890) |
| Rated Current (A) | 22 |
| HSPF2-4 | 9.4 |
| HSPF2-5 | 7.6 |
| COP W/W | 3.15 |
| Minimum Circuit Ampacity (A) | 42 |
| Max. Fuse (A) | 60 |
| Indoor Dimensions (WxDxH) (in.) | 21.02x24.49x52.99 |
| Indoor Unit Weight (lbs.) | 162.7 |
| Indoor Air Flow (H/M/L) CFM | 1805/1582/1135 |
| Indoor Noise Level (H/M/L) dB | 51/45.5/41.5 |
| Outdoor Dimensions (WxDxH) (in.) | 37.48x16.34x52.48 |
| Outdoor Weight (lbs.) | 239.86 |
| Outdoor Noise Level dB | 63.5 |
| Outdoor Air flow (Max) CFM | 4500 |
| Refrigerant Type | R410A / 169.31 Oz |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14AWG*2 Stranded, Shielded |
| Thermostat Type | Wall Remote |
| Warranty | 10 Years Compressor / 5 Years Parts |
