24000 BTU Mini Split Air Conditioner - Heat Pump - SENL/24CD

$1,099.99
SKU:
SENL-24CD-16
UPC:
893088008040
Share

The LETO Series offers an affordable and economic solution for heating and cooling your home or business. With a variable inverter compressor, it offers efficient cooling, and heating (up to 5F/-15C) making it the perfect solution for more temperate climates. Can be easily installed in virtually any room, and requires minimal installation for a permanent, quiet and comfortable air conditioning and heating.


Key Product Features

  • 17 SEER
  • With Heating & Cooling Up to -15C / 5F
  • Ultra-Quiet Indoor Air Handler
  • Inverter Technology
  • Multi Directional Air Vents
  • Bucket Free Design

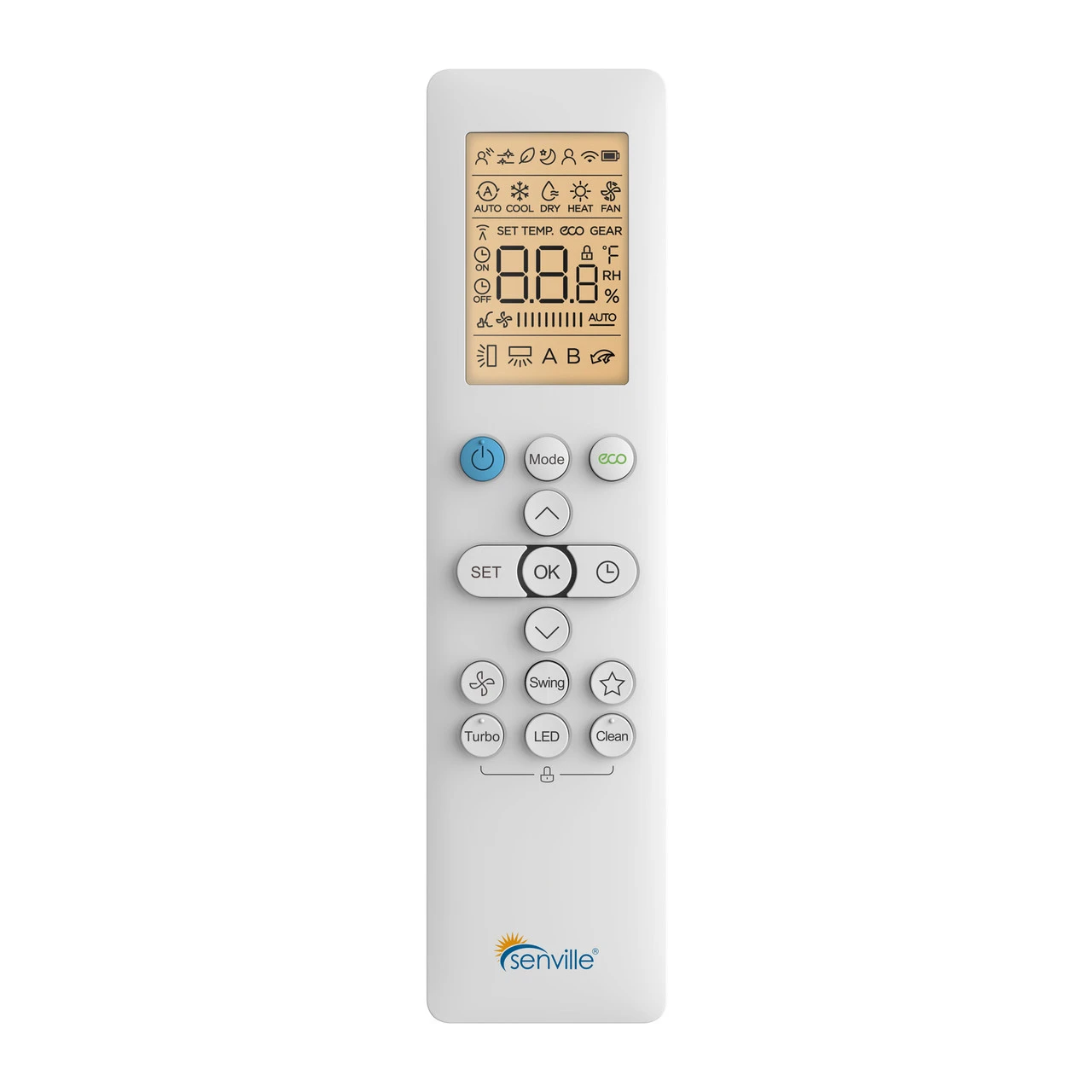

  • With Remote Control

Documentation and Certifications

Technical Specifications

Model Number SENL-24CD/X
Power supply Ph-V-Hz 208-230V, 1Ph, 60Hz
Cooling Capacity      (range)                     Btu/h 24000 (6850-24500)
Input            W 2500
Rated current    A 11.0
EER         Btu/w 9.5
SEER Btu/w 17
Heating Capacity       (range)   Btu/h 24000 (7200-25000)
Input            W 2200
Rated current    A 9.6
COP W/W 3.2
HSPF4      Btu/w 9.5
HSPF5 Btu/w 8.0
MINIMUM  CIRCUIT  AMPACITY A 20
MAX.FUSE A 25
Compressor Model    KTM240D57UMT
Type    Rotary
Brand    GMCC
Capacity      W 7715
Input           W 2085
Rated current(RLA)  A 9.45
Locked rotor Amp(LRA)    A -
Thermal protector    -
Thermal protector position   -
Capacitor       uF -
Refrigerant oil/oil charge   ml VG74/670
Indoor fan motor Model    ZKFP-58-8-1
Brand    Brand Ocean
Input            W 116
Output            W 60
RLA A 0.37
LRA A -
Winding Resistance Ω -
Capacitor        uF -
Speed(Hi/Mi/Lo) r/min 1100/900/750
Indoor air flow (Hi/Mi/Lo) m3/h 1200/1000/765
Indoor air flow (Hi/Mi/Lo) CFM 706/588/450
Indoor noise level (Hi/Mi/Lo) dB(A) 48/42.5/34
Indoor unit Dimension(W*D*H) mm 1080x226x335
Dimension(W*D*H) inch 42.52x8.90x13.19
Packing   (W*D*H) mm 1155x415x320
Packing  (W*D*H) inch 45.47x16.34x12.40
Net/Gross weight   Kg 13.7/18
Net/Gross weight   lbs. 30.2/39.68
Outdoor fan motor Model    ZKFN-50-8-2-3
Input            W 50
Output            W 115
RLA A 0.5
LRA A -
Winding Resistance Ω 37.3
Capacitor        uF -
Speed         r/min 800/750/650
Outdoor air flow             m3/h 3100
Outdoor air flow             CFM 1823
Outdoor noise level         dB(A) 58
Outdoor unit Dimension(W*D*H) mm 845x363x702
Dimension(W*D*H) inch 33.27x14.29x27.64
Packing  (W*D*H) mm 965x395x775
Packing  (W*D*H) inch 37.99x15.55x30.12
Net/Gross weight   Kg 47.7/50.9
Net/Gross weight   lbs. 105.16/112.22
Refrigerant type g R410A/1780
Refrigerant type oz R410A/62.79
Refrigerant precharge ft 25
Additional charge for each ft oz 0.322
Design pressure              PSIG 550/340
Refrigerant piping Liquid side/ Gas side   mm(inch) Φ9.52/Φ15.9(3/8"/5/8")
Max. refrigerant pipe length    m 30
Max. refrigerant pipe length    ft 98
Max. difference in level        m 20
Max. difference in level        ft 66
Connection wiring       16AWG*4  Stranded, unshielded
Thermostat type   Remote Control
Room  temperature Indoor(cooling/ heating) 17~32/0~30
Indoor(cooling/ heating) 62~90/32~86
Outdoor(cooling/heating) -15~50/-15~30
Outdoor(cooling/heating) 5~122/5~86
Application area   (Cooling Standard) m2 30.6-44.9
Application area  (cooling standard)     sq.ft 330-484
Qty’per 20’ /40’ /40'HQ



60/126/142
