12000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/12HF/IC

Senville

$1,399.99
You may be eligible for up to $3,500 in rebates. Check Availability
Senville 12000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/12HF/IC
SKU:
SENA-12HF-IC-16
UPC:
893088001430
Availability:
Arrives in 2–10 business days after shipment
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 5 or above and get 5% off

Product Overview



Senville · AURA Series

SENA-12HF-IC Ceiling Cassette Mini Split and Heat Pump

12,000 BTU of discreet, ceiling-mounted comfort.

ENERGY STAR certified cooling and heating with a four-way ceiling cassette that distributes conditioned air across the room.

Down to -30 °CCold-weather heating
12,000 BTUSystem capacity
22.2 SEER2Rated efficiency
Single zoneFocused comfort

Performance at a Glance

22.2SEER2
11.6HSPF2-4
12.5EER2
-30 °CMinimum heating temperature
R454BRefrigerant

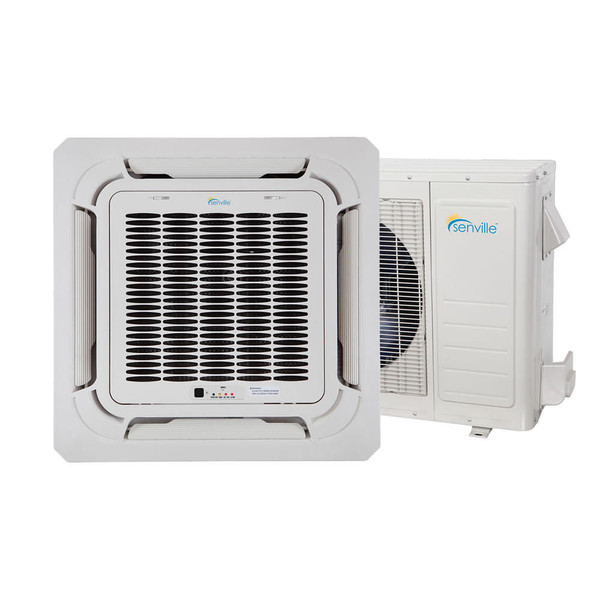

SENA-12HF-IC cassette system component
Flexible placement

Ceiling Cassette Indoor Comfort

The ceiling-integrated indoor unit offers an alternative to a conventional high-wall installation while providing cooling and cold-climate heating from a compact ceiling-mounted format.

Why Choose the SENA-12HF-IC?

Ceiling-integrated comfortDesigned to provide heating at -30 °C (-22 °F) with up to 75% efficiency. Cold-climate performanceProvides cooling and heat-pump operation, with heating designed for outdoor temperatures down to -30 °C (-22 °F). Professional system designCapacity, placement, drainage, electrical requirements and line routing must be confirmed for the completed installation.
Included with your system

Everything You Need to Get Started

SENA-12HF-IC cassette system component
Ceiling cassette indoor unitCeiling-integrated indoor unit
SENA-12HF-IC cassette system component
Outdoor heat-pump unitCold-climate inverter
Wireless remote control supplied with the SENA-12HF-IC
Remote and controlsControls supplied with the system
Selectable insulated installation kit for the SENA-12HF-IC
Selected installation kit16, 25 or 50 ft.
Indoor-to-outdoor mini split wiring harness
Wiring harnessIndoor-to-outdoor connection
16 ft. installation kit included when selected
If the “None” option is selected, no installation kit is included.
Pre-charged for up to 25 ft.
The outdoor unit contains an R454B refrigerant pre-charge for an installation length of up to 25 ft.
Practical options

Complete Your Installation

Senville line set cover kit
OPTIONAL · SOLD SEPARATELY

Line set cover

Helps protect and conceal exposed refrigerant lines on the exterior of the building.

View line set cover →
Outdoor wall-mount bracket for a mini split condenser
OPTIONAL · SOLD SEPARATELY

Outdoor wall bracket

The 18,000-12,000 BTU bracket is listed by Senville as a related option; suitability still depends on the condenser dimensions, installation surface and local requirements.

View bracket →
Insulated refrigerant line set
AS REQUIRED · SOLD SEPARATELY

Longer installation kits

Choose a 25 or 50 ft. option when additional length is required. The system is pre-charged for up to 25 ft.; the 50 ft. kit requires additional refrigerant to be added on-site by the installer.

View line sets →

Buy with Confidence

Manufacturer warranty

10 years on the compressor · 5 years on parts
Coverage is subject to Senville’s warranty terms.

Eligible for Tax Credit

Final eligibility depends on the purchaser, jurisdiction, applicable program requirements and the completed installation.

Professional installation required. The R454B system must be installed and commissioned by a professional with the qualifications required in the installation jurisdiction. The 50 ft. installation kit requires additional refrigerant to be added on-site by the installer.
▶▼Technical Specifications+−
Model Number SENA-12HF-IC
Style Ceiling Cassette Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz) 208/230V, 1Ph, 60Hz
Voltage Range 187-253
SEER2 22.2
EER2 12.5
Cooling Capacity (BTU) 12000
Cooling Range (BTU) 3800~15100
Cooling Input Range (W) 210~1260
Cooling Current Range (A) 1.5~5.6
Heating Capacity (BTU) 12000
Heating Range (BTU) 5300~16200
Heating Input Range (W) 285~1330
Heating Current Range (A) 1.5~5.9
HSPF2-4 11.6
HSPF2-5 8.9
COP W/W 3.7
Minimum Circuit Ampacity (A) 15
Max. Fuse (A) 15
Indoor Air Flow (Turbo/H/M/L) CFM 417.9 / 364.9 / 306.1 / 194.2
Indoor Noise Level (Turbo/H/M/L) dB 46 / 43.5 / 40.5 / 27.5
Indoor Dimensions (WxDxH) (in.) 22.44 x 22.44 x 9.65
Indoor Weight 35.27 Lbs.
Moisture Removal (L/H) 1.45
Outdoor Air Flow (Max) CFM 1471.5
Outdoor Noise Level dB 57
Outdoor Dimensions (WxDxH) (in.) 31.69 x 12.99 x 21.81
Outdoor Weight 72.75 Lbs
Minimum Outdoor Heating Temperature -22°F / -30°C
Refrigerant Type / Charge oz R454B / 35.27
Refrigerant Pre-charge 25 Ft.
Connection Wiring 14*4 AWG
Thermostat Type Remote Control
Warranty 10 Years Compressor / 5 Years Parts

Frequently Asked Questions Before Purchase

▶▼Why choose a ceiling-mounted indoor unit?+−

Its ceiling-integrated format provides an alternative where a conventional high-wall indoor unit is not preferred. A professional should still confirm the placement and system sizing for the room.

▶▼How cold can it be outside while heating?+−

The SENA-12HF-IC is designed to provide heating down to an outdoor temperature of -30 °C (-22 °F).

▶▼What is not included in the purchase price?+−

Installation labor and building-specific materials are not included. An installation may require additional line length, drainage equipment or electrical work.

▶▼Can I install the system myself?+−

No. Professional installation is required for refrigerant handling, system commissioning and compliance with the warranty terms.

▶▼How does the warranty work?+−

The product page specifies 10 years of compressor coverage and five years of parts coverage, subject to Senville's installation, registration and maintenance conditions.
