12000 BTU 1-Way Cassette Air Conditioner - Heat Pump - SENA-12HF-1WC

Senville

$1,499.99
Senville 12000 BTU 1-Way Cassette Air Conditioner - Heat Pump - SENA-12HF-1WC
SKU:
SENA-12HF-1WC-16
UPC:
850083452285
Availability:
Arrives in 2–10 business days after shipment
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 5 or above and get 5% off
Adding to cart… The item has been added

Product Overview



Senville · AURA Series

SENA-12HF-1WC One-Way Cassette Mini Split and Heat Pump

12,000 BTU of streamlined, ceiling-mounted comfort.

Cooling and heating from a slim one-way cassette designed to integrate into the ceiling while directing airflow into the room.

Down to -30 °CCold-weather heating
12,000 BTUSystem capacity
22.0 SEER2Rated efficiency
Single zoneFocused comfort

Performance at a Glance

22.0SEER2
12.0HSPF2-4
15EER2
-30 °CMinimum heating temperature
R454BRefrigerant
SENA-12HF-1WC one-way cassette system component
Flexible placement

Ceiling Cassette Indoor Comfort

The ceiling-integrated indoor unit offers an alternative to a conventional high-wall installation while providing cooling and cold-climate heating from a compact ceiling-mounted format.

Why Choose the SENA-12HF-1WC?

Ceiling-integrated comfortDesigned to provide heating at -30 °C (-22 °F) with up to 75% efficiency. Cold-climate performanceProvides cooling and heat-pump operation, with heating designed for outdoor temperatures down to -30 °C (-22 °F). Professional system designCapacity, placement, drainage, electrical requirements and line routing must be confirmed for the completed installation.
Included with your system

Everything You Need to Get Started

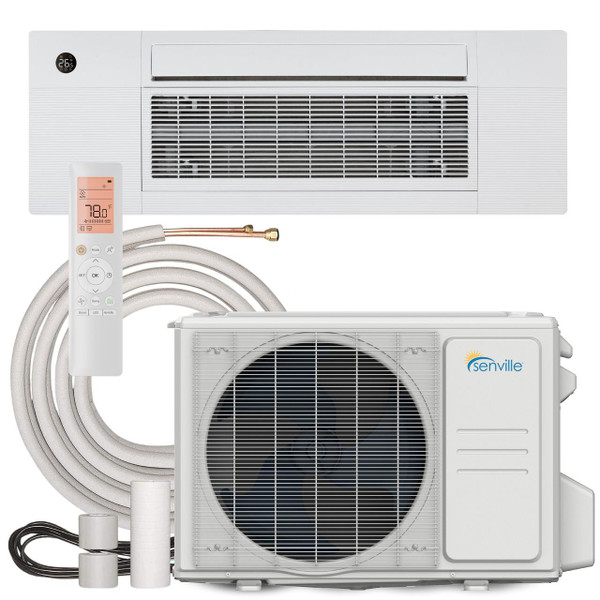

SENA-12HF-1WC one-way cassette system component
Ceiling cassette indoor unitCeiling-integrated indoor unit
SENA-12HF-1WC one-way cassette system component
Outdoor heat-pump unitCold-climate inverter

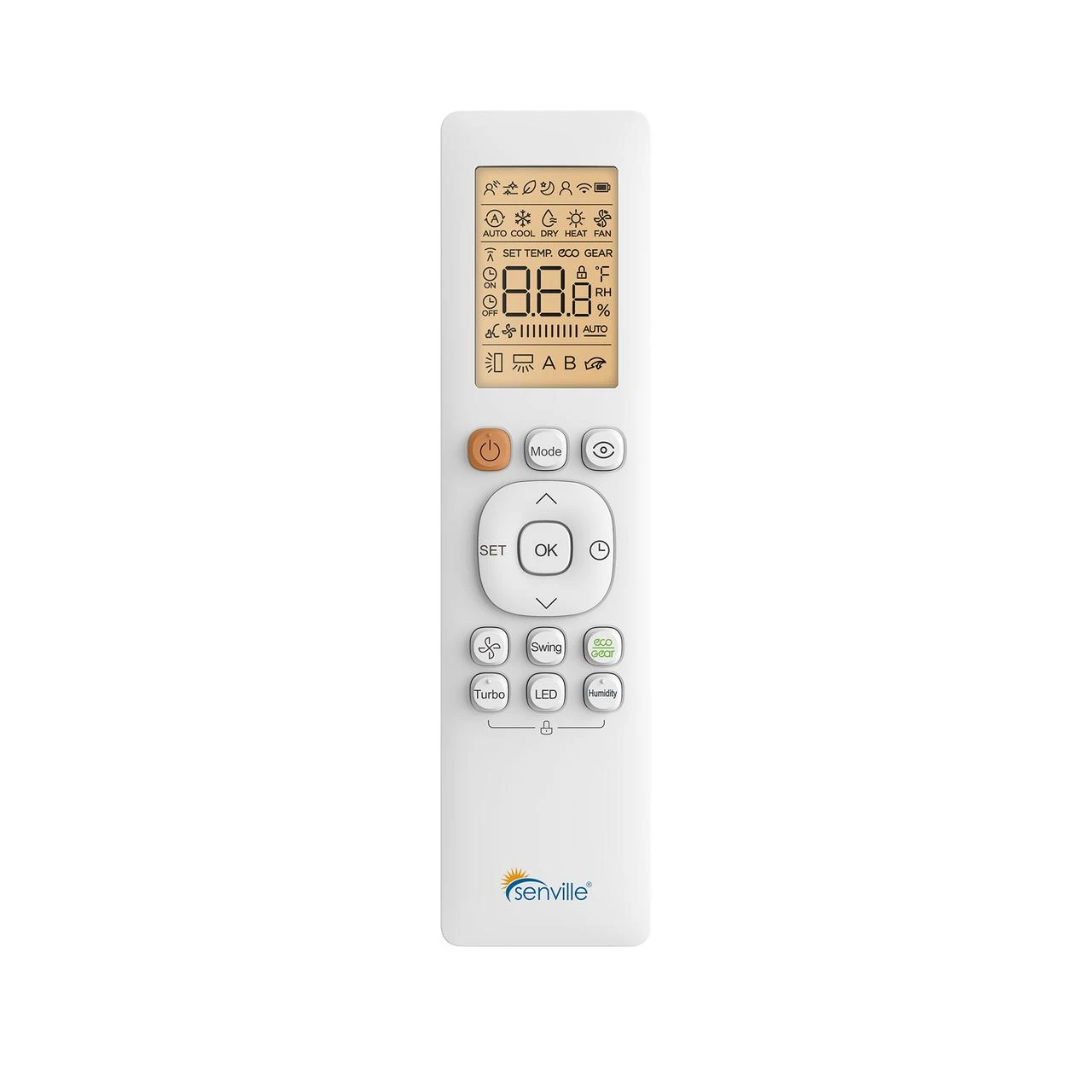

Wireless remote control supplied with the SENA-12HF-1WC
Remote and controlsControls supplied with the system
Selectable insulated installation kit for the SENA-12HF-1WC
Selected installation kit16, 25 or 50 ft.
Indoor-to-outdoor mini split wiring harness
Wiring harnessIndoor-to-outdoor connection
16 ft. installation kit included when selected
If the “None” option is selected, no installation kit is included.
Pre-charged for up to 25 ft.
The outdoor unit contains an R454B refrigerant pre-charge for an installation length of up to 25 ft.
Practical options

Complete Your Installation

Senville line set cover kit
OPTIONAL · SOLD SEPARATELY

Line set cover

Helps protect and conceal exposed refrigerant lines on the exterior of the building.

View line set cover →
Outdoor wall-mount bracket for a mini split condenser
OPTIONAL · SOLD SEPARATELY

Outdoor wall bracket

The 18,000-12,000 BTU bracket is listed by Senville as a related option; suitability still depends on the condenser dimensions, installation surface and local requirements.

View bracket →
Insulated refrigerant line set
AS REQUIRED · SOLD SEPARATELY

Longer installation kits

Choose a 25 or 50 ft. option when additional length is required. The system is pre-charged for up to 25 ft.; the 50 ft. kit requires additional refrigerant to be added on-site by the installer.

View line sets →

Buy with Confidence

Manufacturer warranty

10 years on the compressor · 5 years on parts
Coverage is subject to Senville’s warranty terms.

Eligible for Tax Credit

Final eligibility depends on the purchaser, jurisdiction, applicable program requirements and the completed installation.

Professional installation required. The R454B system must be installed and commissioned by a professional with the qualifications required in the installation jurisdiction. The 50 ft. installation kit requires additional refrigerant to be added on-site by the installer.
▶▼Technical Specifications+−
SpecificationSENA-06HF-1WCSENA-09HF-1WCSENA-12HF-1WCSENA-18HF-1WC
Power Supply (V, Ph, Hz) 208/230V, 60Hz, 1Ph 208/230V, 60Hz, 1Ph 208/230V, 60Hz, 1Ph 208/230V, 60Hz, 1Ph
Cooling Capacity (BTU/h) 6500 9000 12000 16700
SEER2 22.0 24.0 23.0 20.6
EER2 15 14.6 13 12.5
Heating Capacity (BTU/h) 7400 10900 12500 20000
HSPF2-4 12.0 12.1 10.0 12.2
COP (w/w) 3.75 3.71 3.56 3.01
Liquid Line (inch) 1/4" 1/4" 1/4" 1/4"
Gas Line (inch) 3/8" 3/8" 3/8" 1/2"
Indoor Dimensions (WxDxH) 50.31 x 13.19 x 8.98 50.31 x 13.19 x 8.98 50.31 x 13.19 x 8.98 50.31 x 13.19 x 8.98
Outdoor Dimensions (WxDxH) 30.12 x 11.93 x 21.85 31.69 x 12.99 x 21.81 31.69 x 12.99 x 21.81 35.04 x 13.46 x 26.50

Frequently Asked Questions Before Purchase

▶▼Why choose a ceiling-mounted indoor unit?+−

Its ceiling-integrated format provides an alternative where a conventional high-wall indoor unit is not preferred. A professional should still confirm the placement and system sizing for the room.

▶▼How cold can it be outside while heating?+−

The SENA-12HF-1WC is designed to provide heating down to an outdoor temperature of -30 °C (-22 °F).

▶▼What is not included in the purchase price?+−

Installation labor and building-specific materials are not included. An installation may require additional line length, drainage equipment or electrical work.

▶▼Can I install the system myself?+−

No. Professional installation is required for refrigerant handling, system commissioning and compliance with the warranty terms.

▶▼How does the warranty work?+−

The product page specifies 10 years of compressor coverage and five years of parts coverage, subject to Senville's installation, registration and maintenance conditions.
