36000 BTU Tri-Zone Mini Split Air Conditioner - Heat Pump - SENA/36HF/TIC

Senville

$3,099.99
You may be eligible for up to $10,000 in rebates. Check Availability
Senville 36000 BTU Tri-Zone Mini Split Air Conditioner - Heat Pump - SENA/36HF/TIC
SKU:
SENA-36HF-TIC121212
UPC:
850083452308
Availability:
Ships in 2 to 3 business days

Product Overview

Senville · AURA Series

SENA-36HF/TIC Tri-Zone Ceiling Cassette Mini Split and Heat Pump

36,000 BTU of ceiling-mounted comfort across three zones.

Cold-climate cooling and heating for three independently controlled areas using ceiling-cassette indoor units. Have a professional confirm the selected capacities for each zone.

Down to -30 °CCold-weather heating
36,000 BTUSystem capacity
23 SEER2Rated efficiency
Three zonesIndependent comfort

Performance at a Glance

23SEER2
10.7HSPF2-4
13EER2
-30 °CMinimum heating temperature
R454BRefrigerant
Senville AURA outdoor heat-pump unit installed beside a home in winter
Cold-climate comfort

Heating Down to -30 °C

The AURA cold-climate heat pump is designed to continue providing heat at outdoor temperatures down to -30 °C (-22 °F).

Why Choose the SENA-36HF/TIC?

Ceiling-integrated comfortDesigned to provide heating at -30 °C (-22 °F) with up to 75% efficiency. Cold-climate performanceProvides cooling and heat-pump operation, with heating designed for outdoor temperatures down to -30 °C (-22 °F). Professional system designCapacity, placement, drainage, electrical requirements and line routing must be confirmed for the completed installation.
Included with your system

Everything You Need to Get Started

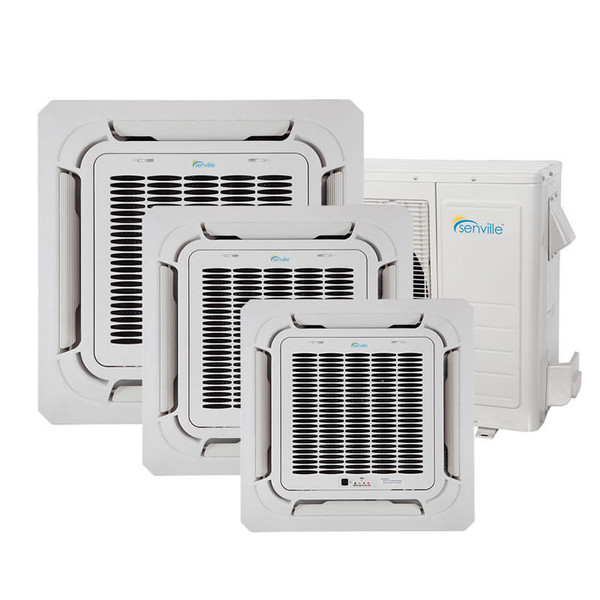

SENA-36HF/TIC tri-zone cassette system component
Ceiling cassette indoor unitCeiling-integrated indoor unit
Senville AURA wall-mounted indoor unit
Outdoor heat-pump unitCold-climate inverter
Senville AURA wireless remote control
Remote and controlsControls supplied with the system
Insulated installation kit for a Senville mini split
Three installation kits16 ft. each
Indoor-to-outdoor mini split wiring harness
Wiring harnessIndoor-to-outdoor connection
Three 16 ft. installation kits included
One installation kit is supplied for each selected indoor unit.
Pre-charged for up to 100 ft. total
The outdoor unit contains an R454B refrigerant pre-charge for a combined installation length of up to 100 ft.
Practical options

Complete Your Installation

Senville line set cover kit
OPTIONAL · SOLD SEPARATELY

Line set cover

Helps protect and conceal exposed refrigerant lines on the exterior of the building.

View accessories →
Outdoor wall-mount bracket for a mini split condenser
OPTIONAL · SOLD SEPARATELY

Outdoor wall bracket

The 18,000-36,000 BTU bracket is listed for this capacity range; suitability still depends on the installation surface and local requirements.

View bracket →
Insulated refrigerant line set
INSTALLATION PLANNING

Confirm all three line-set runs

Three 16 ft. installation kits are included. Have the installer confirm routing, line diameter, total length and any refrigerant adjustment for all three zones.

Buy with Confidence

Manufacturer warranty

10 years on the compressor · 5 years on parts
Qualifying professional installation is required under the warranty terms.

Eligible for Tax Credit

Final eligibility depends on the purchaser, jurisdiction, applicable program requirements and the completed installation.

Professional installation required. The R454B system must be installed and commissioned by a professional with the qualifications required in the installation jurisdiction. Have the installer confirm line routing, drainage and electrical requirements for all three zones.
▶▼Technical Specifications+−
Model Number SENA-36HF-MOA
Style Ductless Mini Split AC With Heat Pump
Number of Zones 2-4
Power Supply (V-Ph-Hz) 208/230V, 1Ph, 60Hz
Voltage Range 187-253
SEER2 23
EER2 13
Cooling Capacity (BTU) 36000
Cooling Range (BTU) 9000~43000
Cooling Input Range (W) 600~4000
Cooling Current  Range (A) 5.2~17.8
Heating Capacity 36000
Heating Range (BTU) 10000~44000
Heating Input Range (W) 600~3750
Heating Current Range (A) 5.2~16.6
HSPF2-4      10.7
HSPF2-5 8.5
COP W/W 4
Minimum Circuit Ampacity (A) 37
Max. Fuse (A) 40
Outdoor Air Flow (Max) CFM 3037.2
Outdoor Noise Level dB 65
Outdoor Dimensions (WxDxH) (in.) 38.58 x 16.34 x 38.39
Outdoor Weight 211.86 Lbs
Minimum Outdoor Heating Temperature  -22°F / -30°C
Refrigerant Type / Charge R454B / 134.04 oz
Refrigerant Pre-charge 100 Ft.
Warranty 10 Years Compressor / 5 Years Parts

Frequently Asked Questions Before Purchase

▶▼What area can the SENA-36HF/TIC serve?+−

The product page recommends approximately 1,300 to 1,500 sq. ft. Final sizing must also account for insulation, climate, windows, ceiling height and sun exposure.

▶▼How cold can it be outside while heating?+−

The SENA-36HF/TIC is designed to provide heating down to an outdoor temperature of -30 °C (-22 °F).

▶▼Which indoor-unit combinations can I choose?+−

Choose the available indoor-unit combination above. The selected combination determines the three indoor units included; have a professional confirm the required capacity for each served area.

▶▼Can I install the system myself?+−

No. Professional installation is required for refrigerant handling, system commissioning and compliance with the warranty terms.

▶▼How does the warranty work?+−

The product page specifies 10 years of compressor coverage and five years of parts coverage, subject to Senville's installation, registration and maintenance conditions.
