Name: 36000 BTU Central Air Conditioner Heat Pump System - SENDC-36HF
Brand: Senville
SKU: SENDC-36HF-16
Price: 3199.99 USD
Availability: InStock

Product Overview

Senville · Central Heat Pump System

SENDC-36HF Central Air Conditioner and Heat Pump

36,000 BTU of whole-home ducted comfort.

Inverter-driven cooling and heating through the home’s ductwork, with ENERGY STAR certified efficiency, operation down to -22°F and R-454B refrigerant.

17.4 SEER2Certified efficiency

36,000 BTUNominal capacity

As low as 41 dBLow indoor setting

R-454BRefrigerant

Performance at a Glance

17.4SEER2

10.3HSPF2-4

11.7EER2

1,188 CFMMaximum indoor airflow

R-454BRefrigerant

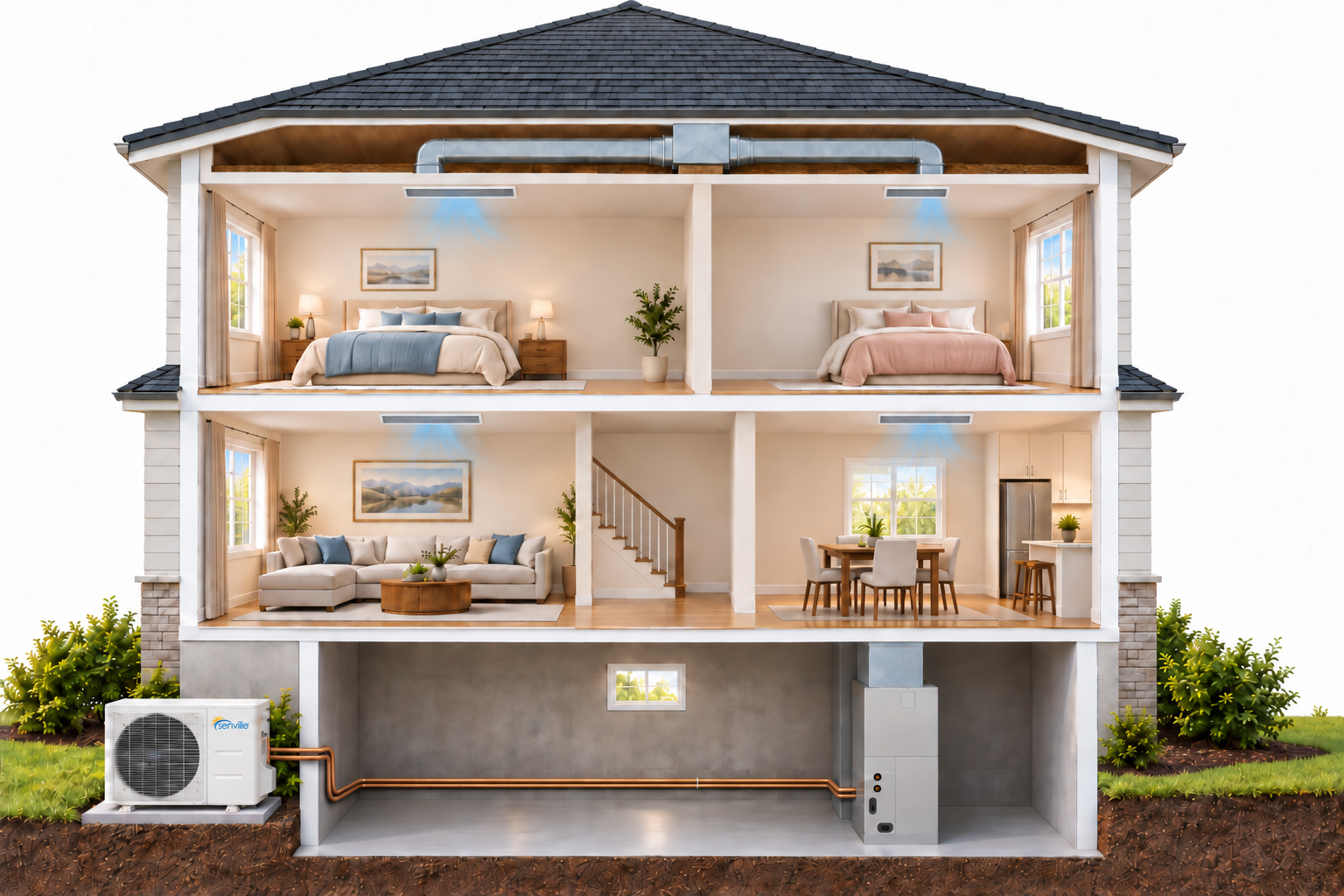

Cutaway view of a home with a Senville central heat pump, air handler and ductwork

Whole-home distribution

Comfort Through Central Ductwork

The indoor air handler distributes conditioned air through the home’s duct system while the outdoor inverter heat pump provides heating and cooling.

Why Choose the SENDC-36HF?

Inverter operationVariable-speed inverter technology adjusts system output to help maintain steady indoor temperatures and reduce unnecessary energy use.

Ducted heating and coolingThe 36,000 BTU system is described for spaces up to 1,400 sq. ft., with final sizing to be confirmed from the building load and duct design.

Configurable supplemental heatSelect no auxiliary heater or a 10 kW, 15 kW or 20 kW heater above. A qualified HVAC professional should confirm the required heating capacity and electrical service.

Configured with your system

Choose the Installation Configuration You Need

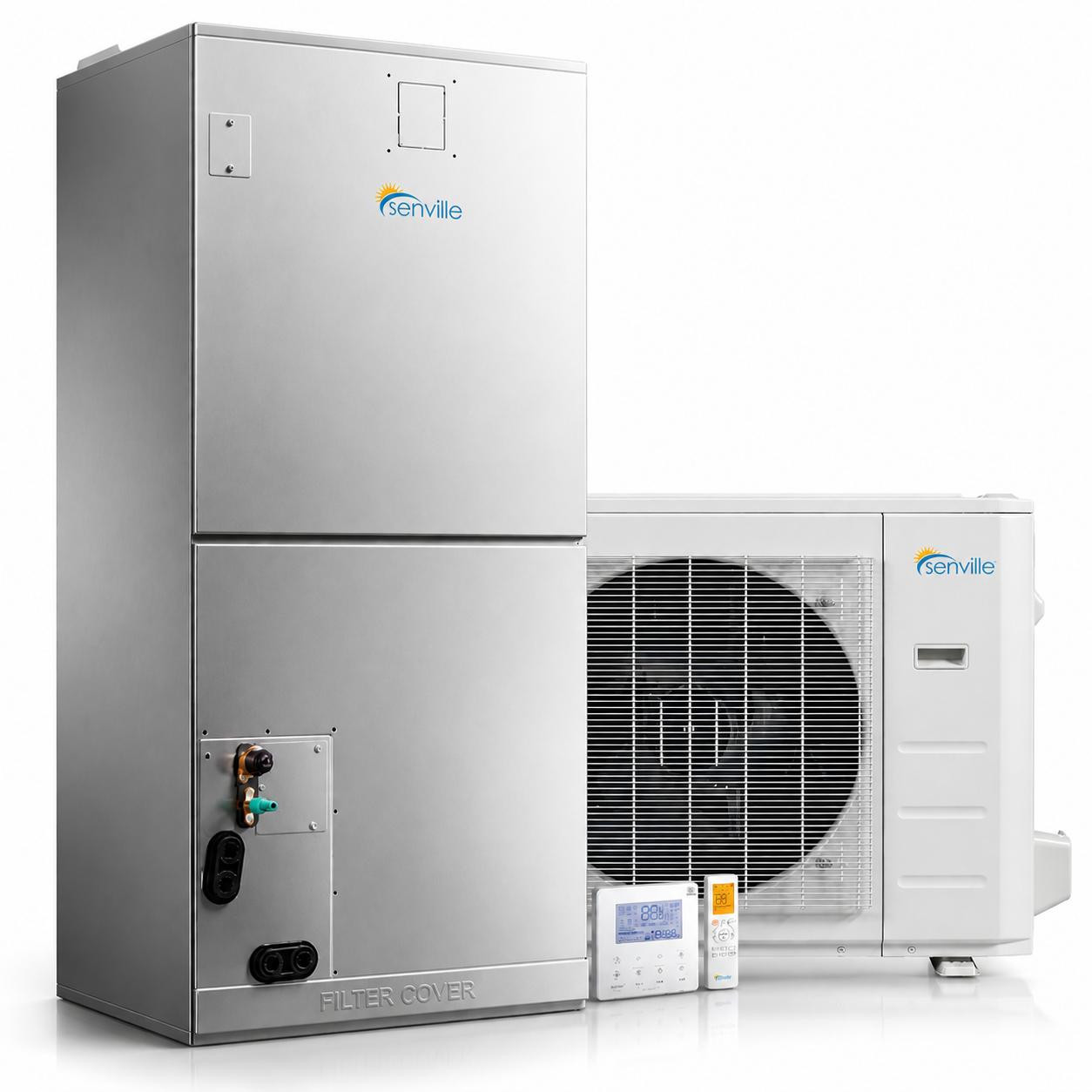

Senville SENDC-36HF outdoor heat pump and indoor air handler

Indoor and outdoor unitsSENDC-36HF central system

Selectable Senville 3/4-inch and 3/8-inch central-system line set

Selected installation kit16 ft. or 50 ft.

Senville auxiliary electric heat module for a central air handler

Selected auxiliary heaterNone, 10 kW, 15 kW or 20 kW

Select both options above
Choose no auxiliary heater or a 10 kW, 15 kW or 20 kW option, plus either the 16 ft. or 50 ft. installation kit, before adding the system to the cart.

50 ft. communication wire not included
Selecting the 50 ft. installation kit does not include a 50 ft. communication wire. The required communication wiring must be supplied separately for installation.

Practical options

Complete Your Central-System Configuration

SELECTABLE ABOVE · ALSO SOLD SEPARATELY

10 kW auxiliary heater

Optional supplemental electric heat for compatible central systems. Have the HVAC contractor confirm the building load and electrical requirements before selection.

View 10 kW heater →

SELECTABLE ABOVE · ALSO SOLD SEPARATELY

15 kW auxiliary heater

Optional supplemental electric heat for compatible central systems. Have the HVAC contractor confirm the building load and electrical requirements before selection.

View 15 kW heater →

SELECTABLE ABOVE · ALSO SOLD SEPARATELY

20 kW auxiliary heater

Optional supplemental electric heat for compatible central systems. Have the HVAC contractor confirm the building load and electrical requirements before selection.

View 20 kW heater →

Buy with Confidence

Manufacturer warranty

10 years on the compressor · 5 years on parts
Coverage is subject to Senville’s warranty terms.

Eligible for Tax Credit

Final eligibility depends on the purchaser, jurisdiction, applicable program requirements and the completed installation.

Professional installation required. A qualified HVAC professional must confirm equipment sizing, ductwork, auxiliary-heat selection, electrical requirements, refrigerant piping and commissioning for the completed installation.

▶▼Technical Specifications+−

Model Number	SENDC-36HF
Style	Central Air Conditioner with Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	17.4
EER2	11.7
Cooling Capacity Range (BTU)	13,000 ~ 47,400
Cooling Input (W)	3,673 (462-5,700)
Cooling Rated Current (A)	15.97
Heating Capacity Range (BTU)	11,000 ~ 57,200
Heating Input (W)	3,448 (593-5,700)
Heating Rated Current (A)	15
HSPF2-4	10.3
HSPF2-5	7.8
COP (W/W)	3.36
Minimum Circuit Ampacity (A)	41
Max. Fuse (A)	50
Indoor Dimensions (WxDxH) (in.)	21.02 x 21.02 x 49.02
Indoor Unit Weight (lbs.)	129.19
Indoor Air Flow (H/M/L) CFM	1,188 / 1,082 / 970
Indoor Noise Level (H/M/L) dB	45 / 43 / 41
Outdoor Dimensions (WxDxH) (in.)	38.58 x 16.34 x 38.39
Outdoor Weight (lbs.)	227
Outdoor Noise Level dB	64
Outdoor Air Flow (Max) CFM	4,500
Refrigerant Type / Charge	R-454B / 165.79 oz
Refrigerant Pre-charge	25 ft.
Connection Wiring	14 AWG x 2, stranded, shielded
Thermostat Type	Wall Remote
Filter Size	20'' x 20'' x 1''
Warranty	10 Years Compressor / 5 Years Parts
Certifications	ENERGY STAR, UL, AHRI, NEEP

Frequently Asked Questions Before Purchase

▶▼Is the SENDC-36HF a concealed-duct mini split?+−

No. It is a central ducted air conditioner and heat-pump system with a full-size indoor air handler intended to distribute air through central ductwork.

▶▼Which auxiliary-heater option should I select?+−

This product can be configured with no auxiliary heater or a 10 kW, 15 kW or 20 kW module. The correct choice depends on the building heat load, climate and electrical capacity and should be confirmed by a qualified HVAC professional.

▶▼Which installation-kit lengths are available?+−

Choose either the 16 ft. or 50 ft. installation kit above. The installer must confirm the required routing, line-set diameter, allowable length and refrigerant requirements before installation.

▶▼Does the 50 ft. installation kit include 50 ft. of communication wire?+−

No. The 50 ft. kit selection for this central system does not include a 50 ft. communication wire. The required communication wiring must be supplied separately for the installation.

▶▼How does the warranty work?+−

The product page specifies 10 years of compressor coverage and five years of parts coverage, subject to Senville’s warranty terms and applicable installation requirements.
